A10V17 A10VD17

Bosch Rexroth A10V17 A10VD17 pump specifications

Axial piston pumps A10V17 (for open circuit) and A10VD17 (for dual/mixed circuit) are universal pumps used in hydraulic systis for various purposes. They are distinguished by their compactness, high efficiency and reliability.

Technical specifications of Bosch Rexroth A10V17 A10VD17:

• Type:
  • A10V17: Axial piston pump for open circuit.
  • A10VD17: Double pump for combined hydraulic systis
• Displacient: 17 cm³
• Working pressure:
  • Nominal: up to 25 MPa 250 bar
  • Maximum: up to 31.5 MPa 315 bar
• Maximum rotation speed: 3000 rpm
• Weight:
  • A10V17: 12-14 kg
  • A10VD17: 24-28 kg (dual configuration)
• Working medium: hydraulic oils, according to DIN 51524 standards.
• Application in special equipment: tractors, excavators, loaders, mini-equipment, combines, sprayers, etc.

Hydraulic pump cross number: R902545736, R910925266, R902495233, R902456450, R909086994, R902462242, R902861160, R910941171, R902496743, R902496348, R902488892, R902497584, R902477328, R902557999, R902510604, R902470347, R902454279, R902510011, R902516266, R902467219, R902469268, R902496889, R902449626, 1100195737, R900535281, R900520913, R900576609, R900717034, R900767015, R900905403, R900951955, R900977236, R900977783, 20S-60-72110, 04065-02812, 04065-06020, 07000-11008, 07000-12011, UC4607642728, UC1100058389, UC1100130051, UC1100156989, UC1100195737, UC1100212575, UC1100220329, UC1100220338, UC1100220365, UC1100220383, UC1100281214, UC1100282749, UC1100282758, UC1180769066, UC1198273502, UC1198273603, UC1300249003, UC1302128009, UC1302179034, UC1607854079, UC1701564907, UC1100130042

Installed in the model: KOMATSU PC30-7, KOMATSU PC30R-7

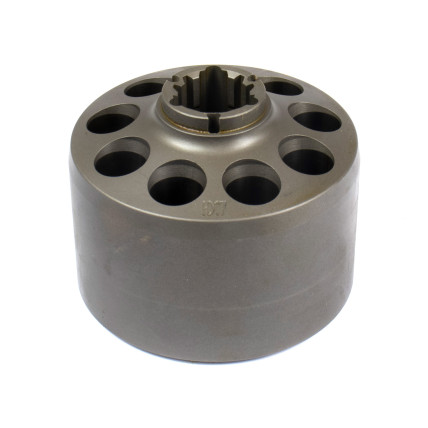

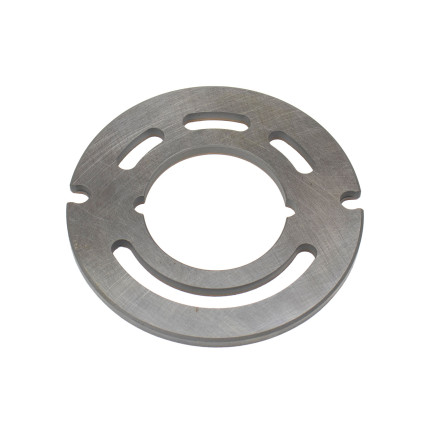

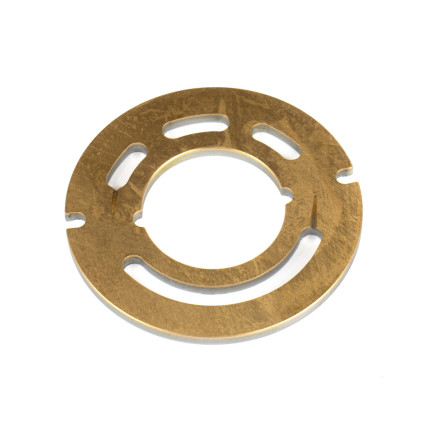

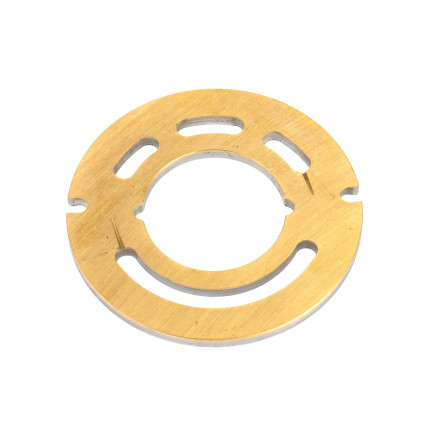

The company "Aspect Plus" offers a wide range of spare parts for the repair of the Bosch Rexroth A10V17 A10VD17 hydraulic pump.
