K5V160

Sort By:

Most Viewed

Ball guide Kawasaki 0820416 SKS

Model: 1080

In stock

Brand:: SKS Hydraulic

Vendor code:: 0820416

Spare part: Ball guide Kawasaki 0820416 SKS Part number: 0820416 Cross-Number: XJBN-00564, V..

26.16 $ excl. VAT 21.80 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Check Valve Kawasaki K3V112DTP HANDOK

Model: 2713

In stock

Brand:: HANDOK

Vendor code:: 2713

Spare part: Check Valve Kawasaki K3V112DTP HANDOK Part number: Cross-Number: Use in: Kawasaki K3V112..

7.08 $ excl. VAT 5.90 $

Valves and solenoids of hydraulic pumps: Valves and solenoids of hydraulic pumps

Most Viewed

Coupling of drive Shaft Kawasaki 334/E2932 HANDOK

Model: 6948

In stock

Brand:: HANDOK

Vendor code:: 334/E2932

Spare part: Coupling of drive Shaft Kawasaki 334/E2932 HANDOK Part number: 334/E2932 Cross-Number: U..

79.80 $ excl. VAT 66.50 $

Couplings: Couplings

Most Viewed

Cylinder block and Valve plate Left Kawasaki VOE14596493 HANDOK

Model: 5127

In stock

Brand:: HANDOK

Vendor code:: VOE14596493

Spare part: Cylinder block and Valve plate Left Kawasaki VOE14596493 HANDOK Part number: VOE14596493..

326.76 $ excl. VAT 272.30 $

Main hydraulic units: Main hydraulic units

Most Viewed

Drive Shaft Kawasaki 334/E2919 SKS

Model: 17853

In stock

Brand:: SKS Hydraulic

Vendor code:: 334/E2919

Spare part: Drive Shaft Kawasaki 334/E2919 SKS Part number: 334/E2919 Cross-Number: VOE14511..

148.68 $ excl. VAT 123.90 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Drive Shaft Kawasaki K5V160DP L=474 mm, 15T/13T HANDOK

Model: 6952

In stock

Brand:: HANDOK

Vendor code:: 6952

Spare part: Drive Shaft Kawasaki K5V160DP L=474 mm, 15T/13T HANDOK Part number: Cross-Number: Use in..

211.44 $ excl. VAT 176.20 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Driven Shaft Kawasaki 334/E2925 SKS

Model: 17854

In stock

Brand:: SKS Hydraulic

Vendor code:: 334/E2925

Spare part: Driven Shaft Kawasaki 334/E2925 SKS Part number: 334/E2925 Cross-Number: VOE1451..

107.88 $ excl. VAT 89.90 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Driven Shaft Kawasaki K5V160DP HANDOK

Model: 6950

In stock

Brand:: HANDOK

Vendor code:: 6950

Spare part: Driven Shaft Kawasaki K5V160DP HANDOK Part number: Cross-Number: Use in: Kawasaki K5V160..

141.60 $ excl. VAT 118.00 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

EPR Valve with manifold Kawasaki 20/950631 HANDOK

Model: 3411

In stock

Brand:: HANDOK

Vendor code:: 20/950631

Spare part: EPR Valve with manifold Kawasaki 20/950631 HANDOK Part number: 20/950631 Cross-Number: X..

318.48 $ excl. VAT 265.40 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

Feed back lever Kawasaki K5V160DTP L= 99 mm HANDOK

Model: 16525

In stock

Brand:: HANDOK

Vendor code:: 16525

Spare part: Feed back lever Kawasaki K5V160DTP L= 99 mm HANDOK Part number: Cross-Number: Use in: Ka..

55.56 $ excl. VAT 46.30 $

Pins and Retainers for Hydraulic Pumps and Motors: Pins and Retainers for Hydraulic Pumps and Motors

Most Viewed

Gear pump Kawasaki 2902440-1676 SKS

Model: 17103

In stock

Brand:: SKS Hydraulic

Vendor code:: 2902440-1676

Spare part: Gear pump Kawasaki 2902440-1676 SKS Part number: 2902440-1676 Cross-Number: 2902440-1676..

162.60 $ excl. VAT 135.50 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

Gear pump Kawasaki XJBN-00655 SKS

Model: 17372

In stock

Brand:: SKS Hydraulic

Vendor code:: XJBN-00655

Spare part: Gear pump Kawasaki XJBN-00655 SKS Part number: XJBN-00655 Cross-Number: 2902440-..

195.72 $ excl. VAT 163.10 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

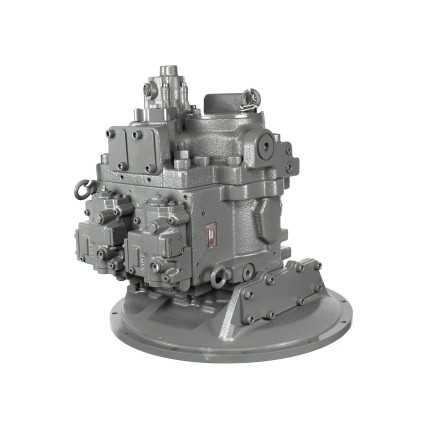

Hydraulic Pump assembly Kawasaki 272-4668 HANDOK

Model: 15596

In stock

Brand:: HANDOK

Vendor code:: 272-4668

Spare part: Hydraulic Pump assembly Kawasaki 272-4668 HANDOK Part number: 272-4668 Cross-Number: 272..

7,489.56 $ excl. VAT 6,241.30 $

Main hydraulic units: Main hydraulic units

Most Viewed

Hydraulic Pump Cover (front) Kawasaki K3V140, K3V180, K5V160, K5V180, K5V200DT, K5V200DTP SKS

Model: 10864

In stock

Brand:: SKS Hydraulic

Vendor code:: 10864

Spare part: Hydraulic Pump Cover (front) Kawasaki K3V140, K3V180, K5V160, K5V180, K5V200DT, K5V200DT..

68.52 $ excl. VAT 57.10 $

Hydraulic housing parts: Hydraulic housing parts

Most Viewed

Hydraulic Pump Cover (rear) Kawasaki 14519957 SKS

Model: 17852

In stock

Brand:: SKS Hydraulic

Vendor code:: 14519957

Spare part: Hydraulic Pump Cover (rear) Kawasaki 14519957 SKS Part number: 14519957 Cross-Nu..

52.32 $ excl. VAT 43.60 $

Hydraulic housing parts: Hydraulic housing parts

Kawasaki K5V160 hydraulic pump specifications

The Kawasaki K5V160 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mobile equipment, in particular in medium and large class excavators.

Technical specifications of the Kawasaki K5V160 hydraulic pump:

Type: Swash plate axial piston pump
Displacient: 160 cm³/rev
Nominal pressure: 343 bar
Maximum pressure: 392 bar
Maximum rotation speed (self-priming): 2000 rpm
Maximum rotation speed: 2350 rpm (with impeller)
Configurations: single-section, tandi or parallel
Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
Weight: approximately 65 kg
Working fluid: Mineral hydraulic oil with anti-wear properties
Viscosity range: 200–1000 cSt (systi must be warmed up before starting)
Applications: garbage trucks, tractors, combines, excavators, loaders, cranes, injection machines, fans

Design features of the Kawasaki K5V160 hydraulic pump:

High reliability: durability and wear resistance
Compact: easy to install in limited space
Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
High performance: stable oil supply even under high loads

Hydraulic pump models: K5V160DP-14JR-2N5X-V, K5V160dp-1vwr-Zn7X-V

Hydraulic pump cross number: 14568923, 14632316, 14639133, 31Q9-10080, 14567427, KSJ12240, KSJ16730, 11933371, 322-8733, 315-4393, 283-6116, 266-7954, 369-9602, 342-1880, 332/K5017, VOE14568923, VOE14567427, 333/K7891, 095-1787, 206-9297, 200-3289, 200-3297, 206-9285, 095-1795, 200-3290, 206-9290, 200-3292, 210-0834, 7Y-4274, 206-9292, 197-0226, 206-9286, 210-0835, 295-9692, 7I-8084, 160-8758, 206-9287, 200-3272, 200-3285, 7I-8177, 190-7674, 200-3283, 210-9435, 200-3286, 200-3294, 234-4539, 200-3287, 200-3273, 200-3277, 200-3288, 200-3275, 209-5875, 200-3280, 200-3279, 200-3278, 200-3281, 200-3296, 210-9434, 200-3282, 200-3274, 200-3276, 096-5516, 200-3298, 200-3271, 200-3284, 8T-1158, 093-1323, 8C-3347, 096-5400, 095-0965, 7I-8164, 200-3295, 274-2490, 246-9867, 247-8841, 242-6920, 247-8985, 247-8729, 242-6919, 8T-4131, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 7I-8152, 109-1294, 7I-8171, 242-6915, 095-0966, 242-6918, 264-8266, 249-1306, 242-6916, 110-5525, 153-4906, 295-9656, 7I-8154, 242-6912, 242-6913, 289-8172, 311-9548, 247-8725, 095-0882, 247-8786, 242-6917, 095-0944, 249-6657, 289-8174, 289-8175, 6V-5204, 247-8718, 289-8173, 8T-0343, 8T-4241, 247-8787, 247-8719, 259-0835, 295-9658, 259-0832, 247-8715, 295-9659, 295-9657, 249-1307, 247-8713, 8T-9080, 225-4516, 249-6670, 247-8720, 247-8717, 095-0929, 247-8726, 259-0831, 206-9291, 225-4518, 295-9660

Installed in the model:

VOLVO: EC290CP, EC300DL, EC300DB, EC350DB, ECR305C, PL30005D.
HYUNDAI: R330LC-9S
SUMITOMO: SH330-A5,SH350-A5
SANY: SY330LC
DOOSAN: DX370
CAT: 330C, 330D, 336C, 336D, CAT330CG, 568 FM LL, 568 FM, 336E L, 336E LN, 336E L, 336E L, 336E, 568 FM, 336E HVG, 336E, 6060, 6060 FS, RH340, RH75C
XCMG: XE335C

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V160 hydraulic pump.
