Kawasaki K5V180 hydraulic pump specifications

The Kawasaki K5V180 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mobile equipment, in particular in large-class excavators.

Technical specifications of the Kawasaki K5V180 hydraulic pump:

• Type: Swash plate axial piston pump
• Displacient: 180 cm³/rev
• Nominal pressure: 343 bar (34.3 MPa)
• Maximum pressure: 392 bar (39.2 MPa)
• Maximum rotation speed (self-priming): 1850 rpm
• Maximum rotation speed (with impeller): 2300 rpm
• Configurations: single-section, tandi or parallel
• Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
• Weight: approximately 160 kg
• Working fluid: Mineral hydraulic oil with anti-wear properties
• Viscosity range: 200–1000 cSt (systi must be warmed up before starting)
• Applications: tractors, injection machines, garbage trucks, fans, loaders, excavators, cranes, combines

Design features of the Kawasaki K5V180 hydraulic pump:

• High reliability: durability and wear resistance
• Compact: easy to install in limited space
• Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
• High performance: stable oil supply even under high loads

Hydraulic pump cross number:

Installed in the model:

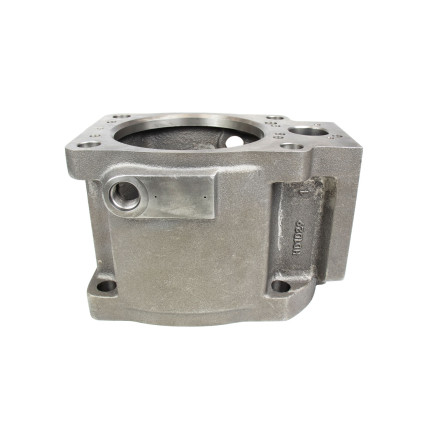

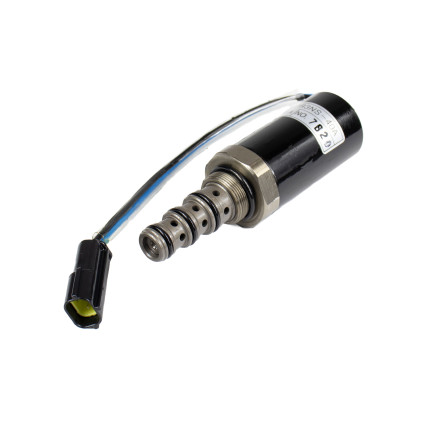

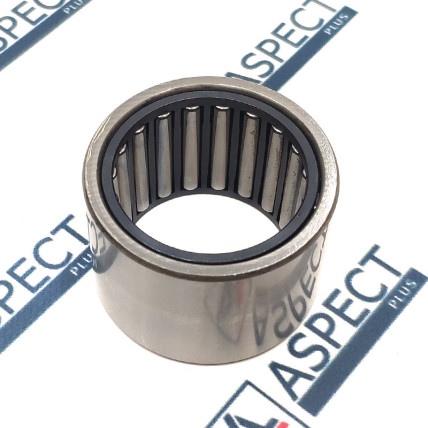

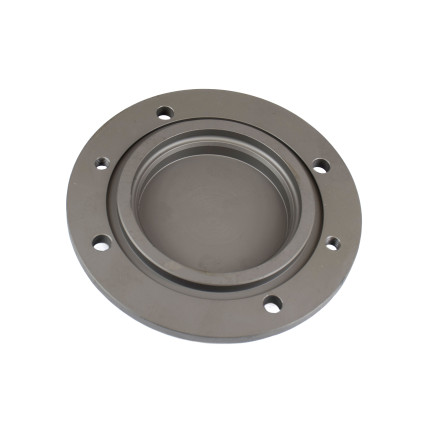

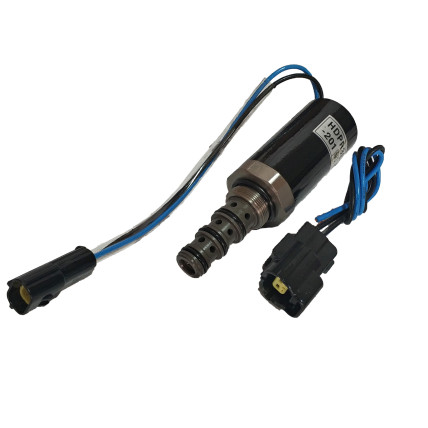

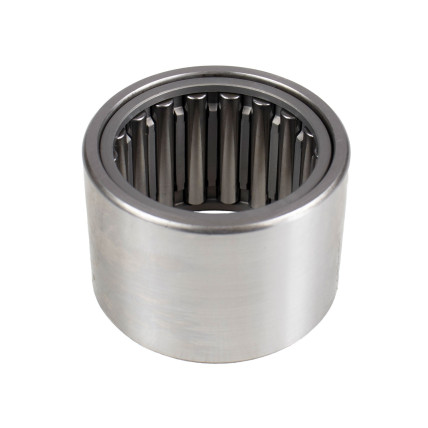

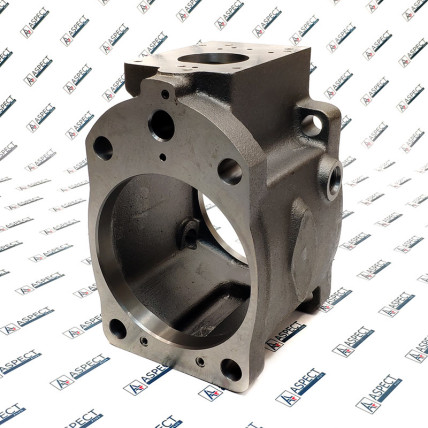

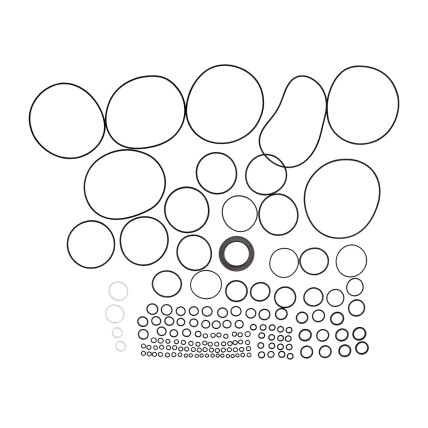

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V180 hydraulic pump.
