K5V200

Sort By:

Most Viewed

Ball guide Kawasaki 0820416 SKS

Model: 1080

In stock

Brand:: SKS Hydraulic

Vendor code:: 0820416

Spare part: Ball guide Kawasaki 0820416 SKS Part number: 0820416 Cross-Number: XJBN-00564, V..

26.16 $ excl. VAT 21.80 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Check Valve Kawasaki K3V112DTP HANDOK

Model: 2713

In stock

Brand:: HANDOK

Vendor code:: 2713

Spare part: Check Valve Kawasaki K3V112DTP HANDOK Part number: Cross-Number: Use in: Kawasaki K3V112..

7.08 $ excl. VAT 5.90 $

Valves and solenoids of hydraulic pumps: Valves and solenoids of hydraulic pumps

Most Viewed

Coupling of drive Shaft Kawasaki K5V200DTH HANDOK

Model: 2772

In stock

Brand:: HANDOK

Vendor code:: 2772

Spare part: Coupling of drive Shaft Kawasaki K5V200DTH HANDOK Part number: Cross-Number: Use in: Kaw..

75.00 $ excl. VAT 62.50 $

Couplings: Couplings

Most Viewed

Cylinder block and Valve plate Left Kawasaki 0451003 SKS

Model: 10866

In stock

Brand:: SKS Hydraulic

Vendor code:: 0451003

Spare part: Cylinder block and Valve plate Left Kawasaki 0451003 SKS Part number: 0451003 Cross-Numb..

389.64 $ excl. VAT 324.70 $

Main hydraulic units: Main hydraulic units

Most Viewed

Cylinder block and Valve plate Left Kawasaki XJBN-00680 HANDOK

Model: 2925

In stock

Brand:: HANDOK

Vendor code:: XJBN-00680

Spare part: Cylinder block and Valve plate Left Kawasaki XJBN-00680 HANDOK Part number: XJBN-00680 C..

408.84 $ excl. VAT 340.70 $

Main hydraulic units: Main hydraulic units

Most Viewed

Cylinder block and Valve plate Right Kawasaki 0820402 SKS

Model: 10865

In stock

Brand:: SKS Hydraulic

Vendor code:: 0820402

Spare part: Cylinder block and Valve plate Right Kawasaki 0820402 SKS Part number: 0820402 Cross-Num..

389.64 $ excl. VAT 324.70 $

Main hydraulic units: Main hydraulic units

Most Viewed

Cylinder block and Valve plate Right Kawasaki XJBN-00666 HANDOK

Model: 2926

In stock

Brand:: HANDOK

Vendor code:: XJBN-00666

Spare part: Cylinder block and Valve plate Right Kawasaki XJBN-00666 HANDOK Part number: XJBN-0..

408.84 $ excl. VAT 340.70 $

Main hydraulic units: Main hydraulic units

Most Viewed

Drive Shaft Kawasaki 334/E2919 SKS

Model: 17853

In stock

Brand:: SKS Hydraulic

Vendor code:: 334/E2919

Spare part: Drive Shaft Kawasaki 334/E2919 SKS Part number: 334/E2919 Cross-Number: VOE14511..

148.68 $ excl. VAT 123.90 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Drive Shaft Kawasaki K5V200DPH L=499 mm, 17T/11T HANDOK

Model: 2765

In stock

Brand:: HANDOK

Vendor code:: 2765

Spare part: Drive Shaft Kawasaki K5V200DPH L=499 mm, 17T/11T HANDOK Part number: Cross-Number: Use i..

181.20 $ excl. VAT 151.00 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Drive Shaft Kawasaki K5V200DPH L=501.5 mm, 15T/15T HANDOK

Model: 2764

In stock

Brand:: HANDOK

Vendor code:: 2764

Spare part: Drive Shaft Kawasaki K5V200DPH L=501.5 mm, 15T/15T HANDOK Part number: Cross-Number: Use..

210.00 $ excl. VAT 175.00 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Drive Shaft Kawasaki K5V200DTH HANDOK

Model: 2773

In stock

Brand:: HANDOK

Vendor code:: 2773

Spare part: Drive Shaft Kawasaki K5V200DTH HANDOK Part number: Cross-Number: Use in: Kawasaki K5V200..

161.64 $ excl. VAT 134.70 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Driven Shaft Kawasaki 20/950843 SKS

Model: 17855

In stock

Brand:: SKS Hydraulic

Vendor code:: 20/950843

Spare part: Driven Shaft Kawasaki 20/950843 SKS Part number: 20/950843 Cross-Number: Use ..

167.40 $ excl. VAT 139.50 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

Driven Shaft Kawasaki 334/E2925 SKS

Model: 17854

In stock

Brand:: SKS Hydraulic

Vendor code:: 334/E2925

Spare part: Driven Shaft Kawasaki 334/E2925 SKS Part number: 334/E2925 Cross-Number: VOE1451..

107.88 $ excl. VAT 89.90 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

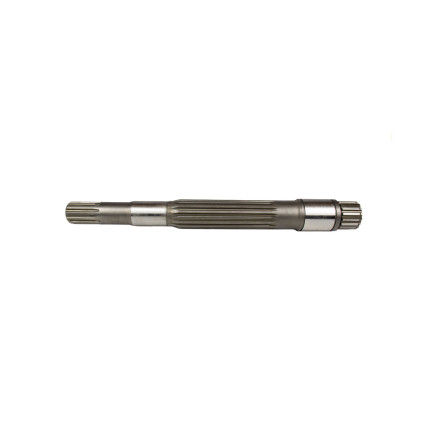

Driven Shaft Kawasaki K5V200DPH L=450 mm, 16T/10T HANDOK

Model: 2766

In stock

Brand:: HANDOK

Vendor code:: 2766

Spare part: Driven Shaft Kawasaki K5V200DPH L=450 mm, 16T/10T HANDOK Part number: Cross-Number: Use ..

173.76 $ excl. VAT 144.80 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

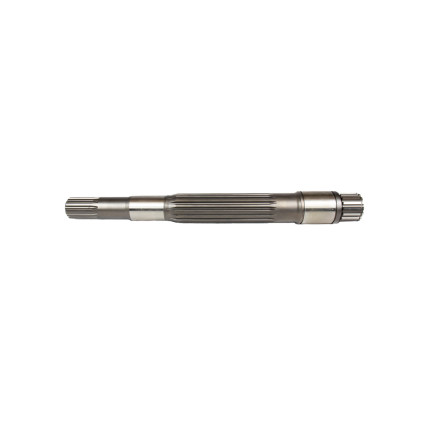

Driven Shaft Kawasaki K5V200DPH L=450 mm, 16T/13T HANDOK

Model: 3533

In stock

Brand:: HANDOK

Vendor code:: 3533

Spare part: Driven Shaft Kawasaki K5V200DPH L=450 mm, 16T/13T HANDOK Part number: Cross-Number: Use ..

181.80 $ excl. VAT 151.50 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Kawasaki K5V200 hydraulic pump specifications

The Kawasaki K5V200 hydraulic pump is a variable displacient axial piston pump with a swash plate designed for open hydraulic systis in heavy mobile equipment, including excavators, cranes, drilling rigs and other equipment requiring high performance and reliability.

Technical specifications of the Kawasaki K5V200 hydraulic pump:

Type: Swash plate axial piston pump
Displacient: 200 cm³/rev
Nominal pressure: 34.3 MPa (343 bar)
Maximum pressure: 39.2 MPa (392 bar)
Maximum rotation speed: 2200 rpm
Weight: approximately 257 kg
Input power: up to 150 kW
Working fluid: Mineral hydraulic oil with anti-wear properties
Viscosity range: 10–1000 cSt
Applications: excavators, loaders, cranes, tractors, combines, injection machines, fans, garbage trucks

Design features of the Kawasaki K5V200 hydraulic pump:

High reliability: durability and wear resistance
Compact: easy to install in limited space
Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
High performance: stable oil supply even under high loads

Hydraulic pump cross number: 20/925278, 20/925278R, 20/925334, 20/925334R, 20/925789, 20/925789R, 20/925652, 20/925652R, 20/951041, 20/951041R, 332/K3167, 332/K5127, 332/K8167, 333/J2146, JSJ0050, JSJ0050R, 31NB-10010, 31NB-10020, 31NB-10022, 31QB-10020, 31QB-10030, 31KB-10010, 31QB-10011 VOE14526609, VOE14569675, VOE14612484, VOE14618624, VOE14595548, 295-9674, 295-9655, 315-4393, 322-8733, 497-8499, 283-6116, 434-8188, 477-8794, 497-8499, 266-7954, 274-2490, 246-9867, 247-8841, 242-6920, 247-8985, 247-8729, 242-6919, 8T-4131, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 7I-8152, 109-1294, 7I-8171, 242-6915, 095-0965, 095-0966, 242-6918, 200-3292, 264-8266, 234-4539, 249-1306, 242-6916, 110-5525, 153-4906, 295-9656, 7I-8154, 242-6912, 242-6913, 289-8172, 7I-8084, 311-9548, 247-8725, 095-0882, 247-8786, 206-9290, 242-6917, 095-0944, 249-6657, 289-8174, 289-8175, 6V-5204, 247-8718, 289-8173, 8T-0343, 8T-4241, 247-8787, 247-8719, 259-0835, 295-9658, 259-0832, 247-8715, 295-9659, 295-9657, 249-1307, 247-8713, 8T-9080, 225-4516, 249-6670, 247-8720, 247-8717, 095-0929, 247-8726, 259-0831, 206-9291, 225-4518, 295-9660

Installed in the model:

CAT :330D, 330DL, 330DN, 336D, 336DL, 345C M330D
HYUNDAI : R4500LC-7, R450LC-7, R500LC-7, R4700LC-7, R450LC-9, R480LCH, R480LC-9S, R520LCF
JCB : JS330, JS330, JS330 AUTO, JS330, JS330LCT4, JS330LRT4, JS330LXT4, JS330NLCT4, JS330NXDT4, JS330XD, JS330XD AUTO, JS360, JS360LR, JS360XD, JS360LCT4, JS360LRT4, JS360LXDT4, JS360NLCT4, JS360NXDT4, JS370, JS460, JS500
VOLVO : EC460B, EC460C, EC470CR, EC480, R520LC-9
KCP KML1714

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V200 hydraulic pump.
