Sort By:
Most Viewed
Model: 2713
Spare part: Check Valve Kawasaki K3V112DTP HANDOK Part number: Cross-Number: Use in: Kawasaki K3V112..
7.08 $
excl. VAT 5.90 $
Valves and solenoids of hydraulic pumps:
Valves and solenoids of hydraulic pumps
Most Viewed
Model: 17608
Spare part: Cylinder block and Valve plate Left Kawasaki 311-9506 SKS
Part number: 311-9506
..
571.44 $
excl. VAT 476.20 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 6741
Spare part: Cylinder block and Valve plate Right Kawasaki 311-9505 HANDOK
Part number: 311-9505..
522.60 $
excl. VAT 435.50 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 17607
Spare part: Cylinder block and Valve plate Right Kawasaki 311-9505 SKS
Part number: 311-9505
..
571.44 $
excl. VAT 476.20 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 9165
Spare part: Drive Shaft Kawasaki 295-9499 HANDOK Part number: 295-9499 Cross-Number: Use in: Please ..
245.28 $
excl. VAT 204.40 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 9166
Spare part: Drive Shaft Kawasaki K5V212DPH HANDOK Part number: Cross-Number: Use in: Kawasaki K5V212..
245.52 $
excl. VAT 204.60 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 9164
Spare part: Driven Shaft Kawasaki 295-9498 HANDOK Part number: 295-9498 Cross-Number: Use in: Please..
206.28 $
excl. VAT 171.90 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 17603
Spare part: Needle Bearing Kawasaki 295-9693 SKS
Part number: 295-9693
Cross-Number:
Use ..
61.68 $
excl. VAT 51.40 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 9169
Spare part: Retainer Plate Kawasaki 295-9504 HANDOK Part number: 295-9504 Cross-Number: Use in: Plea..
53.40 $
excl. VAT 44.50 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17580
Spare part: Retainer Plate Kawasaki 295-9504 SKS
Part number: 295-9504
Cross-Number:
Use ..
64.80 $
excl. VAT 54.00 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17604
Spare part: Roller Bearing Kawasaki 295-9500 SKS
Part number: 295-9500
Cross-Number:
Use ..
78.84 $
excl. VAT 65.70 $
Oil seals, bearings, gears of hydraulic pumps and motors:
Oil seals, bearings, gears of hydraulic pumps and motors
Most Viewed
Model: 16266
Spare part: Seal kit pump Kawasaki K5V212DPH SKS
Part number:
Cross-Number:
Use in: Kawas..
84.24 $
excl. VAT 70.20 $
Hydraulic seal kits:
Hydraulic seal kits
Most Viewed
Model: 17688

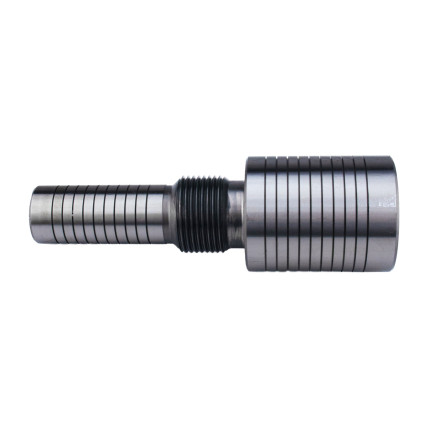

Spare part: Servo Piston Kawasaki 0820429 SKS
Part number: 0820429
Cross-Number: XJBN-00703,..
67.92 $
excl. VAT 56.60 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17606

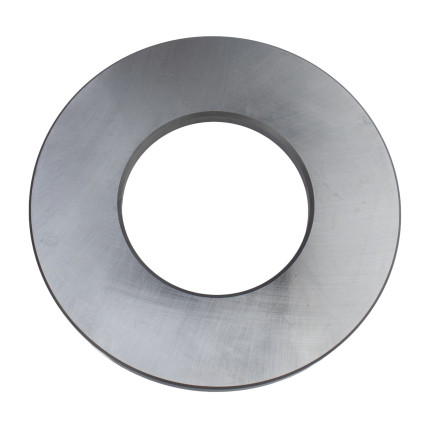

Spare part: Shoe plate Kawasaki 295-9510 SKS
Part number: 295-9510
Cross-Number:
Use in:
..
66.84 $
excl. VAT 55.70 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 17581

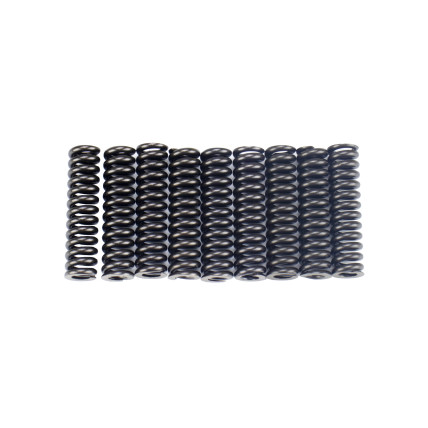

Spare part: Spring of Ball guide Kawasaki 295-9506 SKS
Part number: 295-9506
Cross-Number:
..
3.84 $
excl. VAT 3.20 $
Hydraulic parts other:
Hydraulic parts other
Kawasaki K5V212DPH hydraulic pump specifications
The Kawasaki K5V212DPH hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in heavy mobile equipment, in particular in large-class excavators.
Technical specifications of the Kawasaki K5V212DPH hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 214 cm3/rev
- Nominal pressure: 34.3 MPa (343 bar)
- Maximum pressure: 39.2 MPa (392 bar)
- Maximum rotation speed: 2200 rpm
- Weight: approximately 260 kg
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 10–1000 cSt
- Applications: tractors, combines, garbage trucks, injection machines, fans, excavators, loaders, cranes, etc.
Design features of the Kawasaki K5V212DPH hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: 434-8189, 222-8355, 295-9663, 259-0818, 194-8259, 266-7944, 2228355, 4348189, 2667944, 2959663, 2590818, 1948259, LS10V00016F1, LS10V00021F4, LS10v00021F3, LS10v00021F2, LS10v00021F1, 60344475, 60355586, VOE14644493, 14644493, 295-9693, 252-9167, 247-8985, 247-8729, 242-6919, 451-2184, 6V-8200, 7I-8166, 109-1296, 7I-8172, 242-6914, 247-8712, 295-9506, 109-1294, 7I-8171, 242-6915, 095-0965, 095-0966, 242-6918, 200-3292, 249-1308, 234-4539, 249-1306, 326-4415, 295-9518, 110-5525, 214-7568, 295-9510, 295-9504, 295-9505, 295-9521, 7I-8084, 7I-8164, 095-0882, 247-8786, 347-6530, 295-9695, 095-0944, 249-6657, 295-9508, 295-9509, 8T-4241, 295-9501, 295-9507, 096-5516, 8T-0343, 295-9502, 295-9516, 295-9503, 295-9500, 295-9511, 295-9499, 322-8736, 311-9506, 247-8715, 247-8721, 247-8730, 247-8944, 295-9694, 249-1307, 311-9505, 247-8719, 247-8725, 247-8713, 8T-9080, 249-6670, 295-9512, 247-8720, 247-8787, 247-8717, 095-0929, 247-8726, 295-9498, 206-9291, 295-9517, 295-9497, 342-1906, 247-8841, 249-6671, 225-4518
Installed in the model:
- CAT 345B 345D L 345C 349D 345D L VG 349D L 345D 349D
- KOBELCO SK480 SK485-8 SK460-8 SK460-9 SK500-8 SK500-9
- NEW HOLLAND KOBELCO E485 E485C
- XCMG XE470
- SANY SY500 SY600
- VOLVO EC480E
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V212DPH hydraulic pump.
