Model: 17394
Spare part: Ball guide Kawasaki 0818510 SKS
Part number: 0818510
Cross-Number: XJBN-00422, S..
20.16 $
excl. VAT 16.80 $
Plates, pistons, bushings for hydraulic systems:
Plates, pistons, bushings for hydraulic systems
Most Viewed
Model: 2713
Spare part: Check Valve Kawasaki K3V112DTP HANDOK Part number: Cross-Number: Use in: Kawasaki K3V112..
7.08 $
excl. VAT 5.90 $
Valves and solenoids of hydraulic pumps:
Valves and solenoids of hydraulic pumps
Most Viewed
Model: 4170
Spare part: Coupling of drive Shaft Kawasaki XJBN-00804 SPINPARTS
Part number: XJBN-00804
Cr..
28.44 $
excl. VAT 23.70 $
Couplings:
Couplings
Most Viewed
Model: 2228
Spare part: Drive Shaft Kawasaki XJBN-00802 HANDOK Part number: XJBN-00802 Cross-Number: 20/950625 U..
49.56 $
excl. VAT 41.30 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 2781
Spare part: Driven Shaft Kawasaki XJBN-00803 HANDOK Part number: XJBN-00803 Cross-Number: 20/950625 ..
45.84 $
excl. VAT 38.20 $
Shafts of hydraulic pumps and motors:
Shafts of hydraulic pumps and motors
Most Viewed
Model: 9153
Spare part: Feed back lever Kawasaki K5V80 HANDOK Part number: Cross-Number: Use in: Kawasaki K5V80 ..
31.32 $
excl. VAT 26.10 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 16523
Spare part: Feed back lever Kawasaki K5V80 L= 95.5 mm HANDOK Part number: Cross-Number: Use in: Kawa..
33.48 $
excl. VAT 27.90 $
Pins and Retainers for Hydraulic Pumps and Motors:
Pins and Retainers for Hydraulic Pumps and Motors
Most Viewed
Model: 6609
Spare part: Gear Hub Kawasaki K5V80 12T SPINPARTS Part number: Cross-Number: Use in: Kawasaki K5V80 ..
32.88 $
excl. VAT 27.40 $
Couplings:
Couplings
Most Viewed
Model: 4006
Spare part: Gear pump Kawasaki 2902440 HANDOK Part number: 2902440 Cross-Number: 2902440-1671A, 2902..
179.16 $
excl. VAT 149.30 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 11090
Spare part: Gear pump Kawasaki K5V80DTP CCW=OUT HANDOK Part number: Cross-Number: Use in: Kawasaki K..
169.08 $
excl. VAT 140.90 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 11088

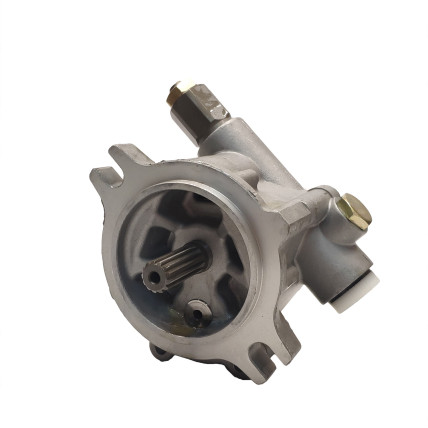

Spare part: Gear pump Kawasaki K5V80DTP CW=IN HANDOK Part number: Cross-Number: Use in: Kawasaki K5V..
169.08 $
excl. VAT 140.90 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 11089

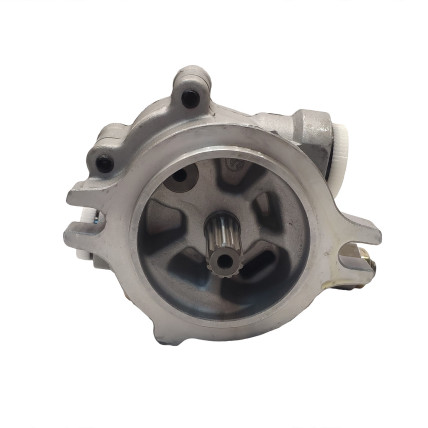

Spare part: Gear pump Kawasaki K5V80DTP CW=OUT HANDOK Part number: Cross-Number: Use in: Kawasaki K5..
169.08 $
excl. VAT 140.90 $
PTO, gear pumps, regulators:
PTO, gear pumps, regulators
Most Viewed
Model: 11166

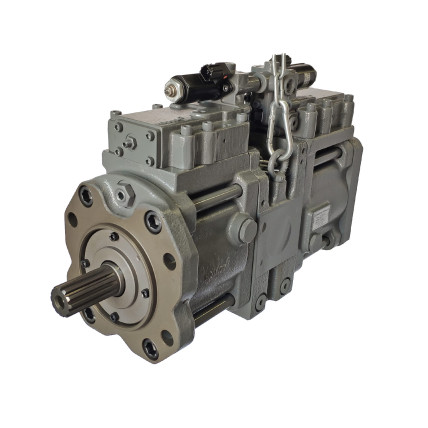

Spare part: Hydraulic Pump assembly Kawasaki YB10V00001F5 HANDOK Part number: YB10V00001F5 Cross-Num..
2,997.36 $
excl. VAT 2,497.80 $
Main hydraulic units:
Main hydraulic units
Most Viewed
Model: 11838

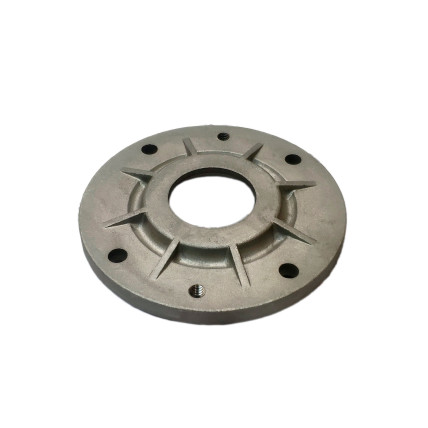

Spare part: Hydraulic Pump Cover (front) Kawasaki VOE14508525 HANDOK Part number: VOE14508525 Cross-..
31.44 $
excl. VAT 26.20 $
Hydraulic housing parts:
Hydraulic housing parts
Most Viewed
Model: 5919
Spare part: Hydraulic Pump Cover (rear) Kawasaki 20/950613H HANDOK Part number: 20/950613H Cross-Num..
63.12 $
excl. VAT 52.60 $
Hydraulic housing parts:
Hydraulic housing parts
Kawasaki K5V80 hydraulic pump specifications
The Kawasaki K5V80 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mobile equipment, in particular in excavators.
Technical specifications of the Kawasaki K5V80 hydraulic pump:
- Type: Swash plate axial piston pump
- Displacient: 80 cm3/rev
- Nominal pressure: 343 bar
- Maximum pressure: 392 bar
- Maximum rotation speed (self-priming): 2460 rpm
- Maximum rotation speed: 3000 rpm
- Design: single-section, tandi or parallel
- Types of regulators: mechanical, hydraulic, electro-hydraulic, load-compensated (LS), pressure and combined
- Weight: approximately 65 kg
- Working fluid: Mineral hydraulic oil with anti-wear properties
- Viscosity range: 200–1000 cSt (systi must be warmed up before starting)
- Applications: injection machines, fans, excavators, loaders, cranes, tractors, combines, garbage trucks
Design features of the Kawasaki K5V80 hydraulic pump:
- High reliability: durability and wear resistance
- Compact: easy to install in limited space
- Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
- High performance: stable oil supply even under high loads
Hydraulic pump cross number: 31N4-10010, 31N4-15040, 31N5-10010, 31N5-10011, 31N5-10030, 31N5-15010, 31N5-15011, 31N5-15030, 31Q4-10010, 31Q4-15020, XJBN-00848, XJBN-00927, 31N4-10010NC, 31N4-10010PA, 31N5-10030PA, 31Q4-10020, 31N4-15021, 31Q5-10010, 31Q5-15010, 31Q5-15030, 31Q4-15030, 31Q4-19010, 31N4-15022 20/950329, 20/951074, 20/951074R, FAJ0225, KNJ0605, 20/925755, 20/925756, 20/925611, 333/J8616, 333/J0818, 332/K5826, 333/J1113, VOE14504220, VOE14514893, VOE14531854, VOE14533644, SA1142-00900, 14531859, 14574463 401-00252B, 401-00161, 4601510, 4460659, 9227147, 9233036, YX10V00001F1.
Installed in the model:
- HYUNDAI: R140W-7A, R140W-9, R170W-7, R170W-7A, R140W-7A, R140W-9, R170W-7, R170W-7A, R140LC-7A, R140LC-9, R160LC-7, R160LC-7A, R180LC-7, R180LC-7A, R1400LC-7A, R140LC-9S, R1300WM, R1400W-7, R1700W-7, R1400W-9, R160LC-9, R180LC-9, R180LC-9S, R170W-9, R170W-9S, R140W-9B, R1400W-7A
- JCB: JS175W, JS175W T3, JS175W-T2, JS190
- VOLVO: EC150 LC, EC160B, EC160C NL, EC180B LC, FC2121C, EW170, EW145B, EC170, EW145BP, EW145C, EC160BLC, EC160BNLC
- DAEWOO-DOOSAN: S130W-V, S140W-V
- HITACHI: ZX130W, ZX160W.
The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K5V80 hydraulic pump.
