K7V100

Sort By:

Most Viewed

Ball guide Kawasaki VOE14552735 HANDOK

Model: 11108

In stock

Brand:: HANDOK

Vendor code:: VOE14552735

Spare part: Ball guide Kawasaki VOE14552735 HANDOK Part number: VOE14552735 Cross-Number: Use in: Pl..

33.48 $ excl. VAT 27.90 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Cylinder block and Valve plate Left Kawasaki VOE14552721 HANDOK

Model: 11110

In stock

Brand:: HANDOK

Vendor code:: VOE14552721

Spare part: Cylinder block and Valve plate Left Kawasaki VOE14552721 HANDOK Part number: VOE14552721..

386.76 $ excl. VAT 322.30 $

Main hydraulic units: Main hydraulic units

Most Viewed

Cylinder block and Valve plate Right Kawasaki VOE14552722 HANDOK

Model: 11111

In stock

Brand:: HANDOK

Vendor code:: VOE14552722

Spare part: Cylinder block and Valve plate Right Kawasaki VOE14552722 HANDOK Part number: VOE1455272..

386.76 $ excl. VAT 322.30 $

Main hydraulic units: Main hydraulic units

Most Viewed

Drive Shaft Kawasaki VOE14552726 HANDOK

Model: 11113

In stock

Brand:: HANDOK

Vendor code:: VOE14552726

Spare part: Drive Shaft Kawasaki VOE14552726 HANDOK Part number: VOE14552726 Cross-Number: Use in: P..

95.52 $ excl. VAT 79.60 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

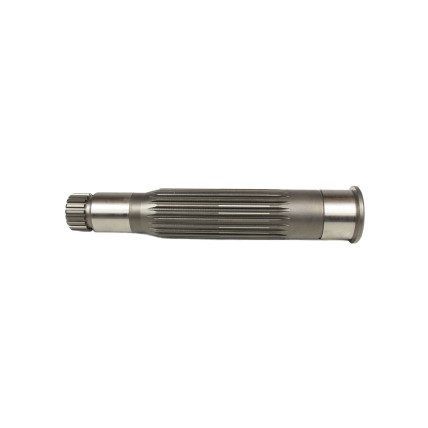

Driven Shaft Kawasaki VOE14552727 HANDOK

Model: 11112

In stock

Brand:: HANDOK

Vendor code:: VOE14552727

Spare part: Driven Shaft Kawasaki VOE14552727 HANDOK Part number: VOE14552727 Cross-Number: Use in: ..

84.72 $ excl. VAT 70.60 $

Shafts of hydraulic pumps and motors: Shafts of hydraulic pumps and motors

Most Viewed

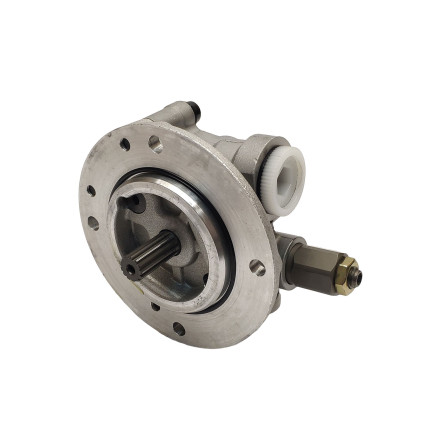

Gear pump Kawasaki K7V100DTP HANDOK

Model: 11841

In stock

Brand:: HANDOK

Vendor code:: 11841

Spare part: Gear pump Kawasaki K7V100DTP HANDOK Part number: Cross-Number: Use in: Kawasaki K7V100DT..

190.20 $ excl. VAT 158.50 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

Gear pump Kawasaki K7V63DTP, K7V100DTP HANDOK

Model: 15580

In stock

Brand:: HANDOK

Vendor code:: 15580

Spare part: Gear pump Kawasaki K7V63DTP, K7V100DTP HANDOK Part number: Cross-Number: Use in: Kawasak..

190.20 $ excl. VAT 158.50 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Top

Most Viewed

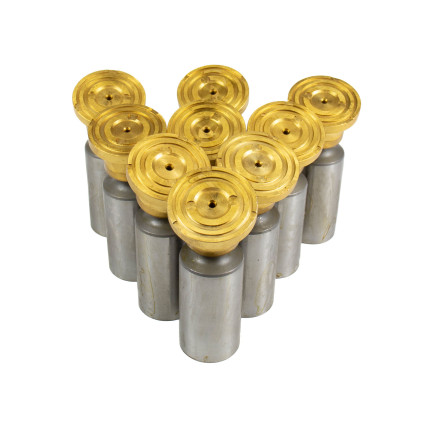

Piston shoe Kawasaki VOE14552720 HANDOK

Model: 11114

In stock

Brand:: HANDOK

Vendor code:: VOE14552720

Spare part: Piston shoe Kawasaki VOE14552720 HANDOK Part number: VOE14552720 Cross-Number: Use in: P..

20.40 $ excl. VAT 17.00 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

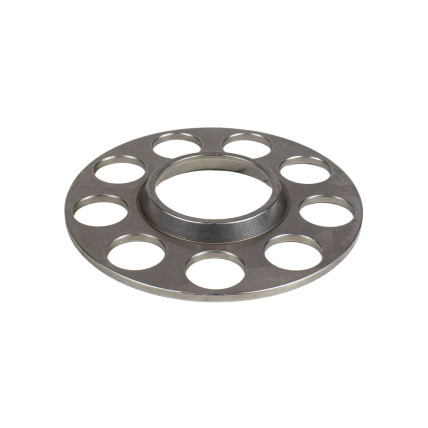

Retainer Plate Kawasaki VOE14552734 HANDOK

Model: 11115

In stock

Brand:: HANDOK

Vendor code:: VOE14552734

Spare part: Retainer Plate Kawasaki VOE14552734 HANDOK Part number: VOE14552734 Cross-Number: Use in..

33.12 $ excl. VAT 27.60 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

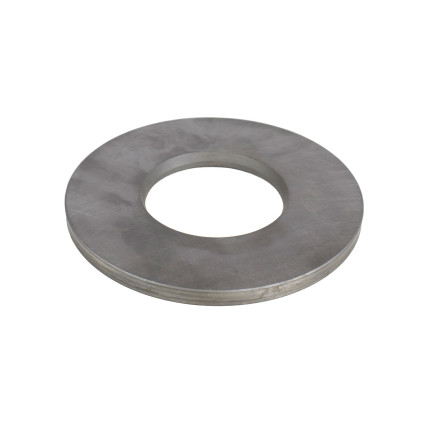

Shoe plate Kawasaki VOE14552736 HANDOK

Model: 11116

In stock

Brand:: HANDOK

Vendor code:: VOE14552736

Spare part: Shoe plate Kawasaki VOE14552736 HANDOK Part number: VOE14552736 Cross-Number: Use in: Pl..

31.68 $ excl. VAT 26.40 $

Plates, pistons, bushings for hydraulic systems: Plates, pistons, bushings for hydraulic systems

Most Viewed

Spring of Ball guide SA7223-00180 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100 SKS

Model: 17482

In stock

Brand:: SKS Hydraulic

Vendor code:: SA7223-00180

Spare part: Spring of Ball guide SA7223-00180 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100 SKS ..

2.28 $ excl. VAT 1.90 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

Spring of Rotor 2437U219S157 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100, K7V125, K7V140 SKS

Model: 15524

In stock

Brand:: SKS Hydraulic

Vendor code:: 2437U219S157

Spare part: Spring of Rotor 2437U219S157 Kawasaki K3V180, K3VG180, K5V160, K5V200, K7V100, K7V125, K..

3.72 $ excl. VAT 3.10 $

Hydraulic parts other: Hydraulic parts other

Most Viewed

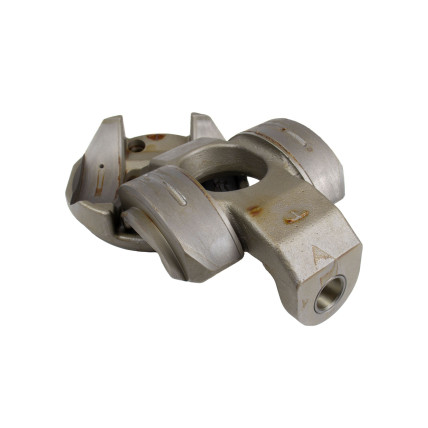

Swash plate (Cam rocker) Kawasaki VOE14552738 and VOE14552723 HANDOK

Model: 11117

In stock

Brand:: HANDOK

Vendor code:: VOE14552738 and VOE14552723

Spare part: Swash plate (Cam rocker) Kawasaki VOE14552738 and VOE14552723 HANDOK Part number: VOE145..

300.72 $ excl. VAT 250.60 $

Main hydraulic units: Main hydraulic units

Most Viewed

EPR Valve Kawasaki 4654325 SKS

Model: 17634

Pre-Order

Brand:: SKS Hydraulic

Vendor code:: 4654325

Spare part: EPR Valve Kawasaki 4654325 SKS Part number: 4654325 Cross-Number: Yb35v00006f1, ..

143.04 $ excl. VAT 119.20 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Most Viewed

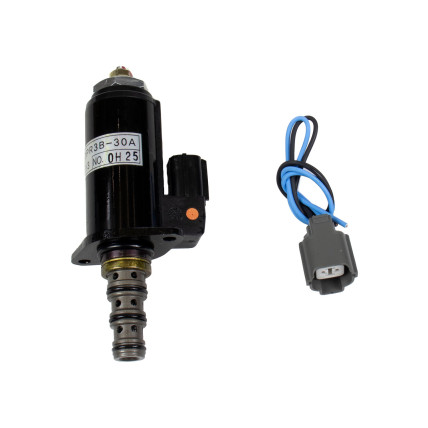

EPR Valve XJBN-01608 Kawasaki K7V63, K7V100, K7V125, K7V140, K7V180 HANDOK

Model: 11124

Pre-Order

Brand:: HANDOK

Vendor code:: XJBN-01608

Spare part: EPR Valve XJBN-01608 Kawasaki K7V63, K7V100, K7V125, K7V140, K7V180 HANDOK Part number: ..

169.32 $ excl. VAT 141.10 $

PTO, gear pumps, regulators: PTO, gear pumps, regulators

Kawasaki K7V100 hydraulic pump specifications

The Kawasaki K7V100 hydraulic pump is a variable displacient axial piston pump with a swash plate, designed for open hydraulic systis in mobile equipment, particularly in mid-range excavators.

Technical specifications of the Kawasaki K7V100 hydraulic pump:

Type: Swash plate axial piston pump
Displacient: 100 cm³/rev
Nominal pressure: 35 MPa (350 bar)
Maximum pressure: 40 MPa (400 bar)
Maximum rotation speed (self-priming): 2,650 rpm
Maximum rotation speed: 3,100 rpm
Maximum input torque: 700 N m
Configurations: single-section, tandi
Working fluid: Mineral hydraulic oil with anti-wear properties
Viscosity range: 10–1000 cSt
Applications: excavators, cranes, loaders, tractors, injection machines, combines, fans, garbage trucks, etc.

Design features of the Kawasaki K7V100 hydraulic pump:

High reliability: durability and wear resistance
Compact: easy to install in limited space
Flexibility: adaptability to different operating conditions thanks to a wide choice of configurations and regulators
High performance: stable oil supply even under high loads

Hydraulic pump cross number: 14538542, VOE14538542, YM10V00006F1, YM10V00006F2

Hydraulic pump models: K7V100DTP139R-0E01-V

Installed in the model:

VOLVO EC160CL EC160C EC160CN L EC180C L
NEW HOLLAND E175B, E175B-C
KOBELCO ED195-8, SK170-8

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kawasaki K7V100 hydraulic pump.
