MAG26

Kayaba MAG26 hydraulic motor characteristics

The Kayaba MAG26 hydraulic motor is an axial piston motor with a variable displacement and a built-in planetary gearbox, designed to drive the chassis of compact construction equipment weighing up to ~6 tons. It provides high power, reliability and smooth running with compact dimensions. Ideal for mini excavators and crawler loaders.

Kayaba MAG26 hydraulic motor characteristics:

• Technical characteristics of the Kayaba MAG26 hydraulic motor:
• Type: axial piston hydraulic motor with variable displacement
• Design: integrated planetary gearbox, compact unit
• Displacement: ~26 cm³/rev
• Maximum pressure: up to 300 bar
• Maximum rotation speed: up to 3000 rpm
• Total weight: ~60 kg
• Control system: hydraulic, with built-in pressure and flow control valves

The Kayaba MAG26 hydraulic motor is widely used as a travel motor in mini excavators, mini crawler loaders and other compact construction equipment. Due to its versatility and reliability, it is used in machines weighing up to ~6 tons.

The Kayaba MAG26 hydraulic motor has the following advantages::

• Compactness and ease of installation in confined spaces
• Reliable operation under high loads and in aggressive conditions
• Smooth start and precise rotation control
• High performance while maintaining energy efficiency
• Long service life thanks to Japanese manufacturing quality

Hydraulic motor cross number: B0240-26013, 19031-08300, B0240-26014, B0245-38600, 20R-60-43101

Installed in equipment models:

• CAT E303C
• YUCHAI YC35
• KOMATSU PC20-6, PC40
• TAKEUCHI TB035, TB35
• KUBOTA KX121-3, KX45
• YANMAR B37

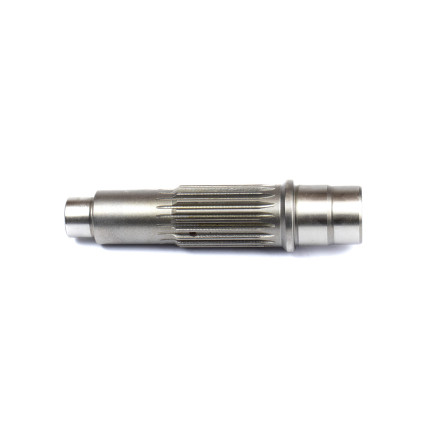

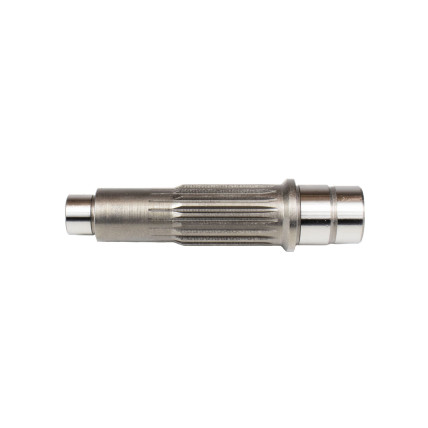

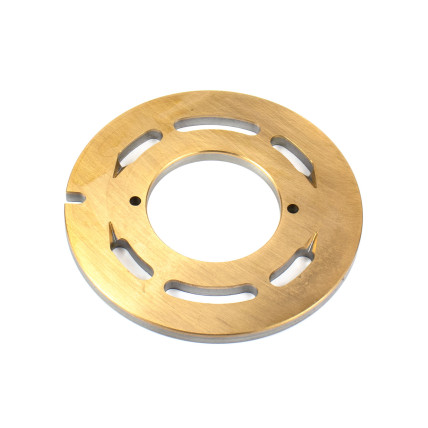

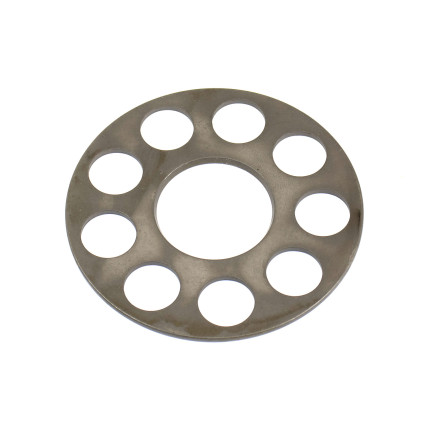

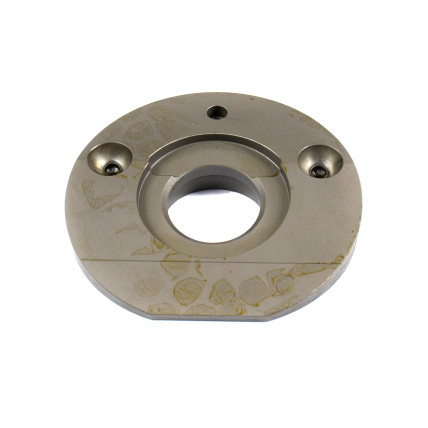

The company "Aspect Plus" offers a wide range of spare parts for repairing the Kayaba MAG26 hydraulic motor.
