MS11 MSE11

Characteristics of the Poclain MS11 MSE11 hydraulic motor

The Poclain MS11 and MSE11 hydraulic motors are powerful units designed for heavy mobile machinery where extremely high torque and reliability are required. These motors are the driving force behind large construction, agricultural and mining machines, providing them with excellent traction and performance. The MSE11 series, as an evolutionary development of the MS11, offers significantly higher rotation speeds and efficiency, which allows to increase the productivity of the machinery and reduce operating costs.

Technical characteristics of the Poclain MS11 MSE11 hydraulic motor:

• Type: High Torque Low Speed (HTLS) Hydraulic Motor
• Construction:
  • Poclain MS11: Radial piston, modular. "Classic" version
  • Poclain MSE11: Radial piston, modular. "HighFlow" version with optimized channels
• Displacement: From 1190 to 2147 cm3/rev
• Max. torque: Up to 3400 Nm
• Max. continuous pressure:
  • Poclain MS11: Up to 300 bar
  • Poclain MSE11: Up to 350 bar
• Max. rotation speed:
  • Poclain MS11: Up to 385 rpm
  • Poclain MSE11: Up to 450 rpm
• Max. power:
  • Poclain MS11: Up to 65 kW (87 hp)
  • Poclain MSE11: Up to 100 kW (134 hp)
• Weight: ~ 85 - 105 kg

Poclain MS11 and MSE11 motorsdesigned for heavy equipment where reliability and power are critical factors.

• Construction machinery:
  • Traction drive for large track loaders and bulldozers: Provides excellent traction for moving large volumes of soil.
  • Large road milling machines: Milling drum drive for removing thick layers of asphalt.
  • Foundation drilling rigs: Drive for rotating powerful drills.
• Agricultural and forestry machinery:
  • Wheel drive of large combines and forage harvesters: Ensures the passage of heavy machines on soft and wet soils.
  • Drive for large forwarders and skidders (skid tractors): Moving heavy logs off-road.
  • Wood chipper drive: Used to rotate a massive cutting drum.
• Mining industry:
  • Traction drive for tunneling combines and mine loaders: Reliable operation in extreme conditions underground.
  • Conveyor and feeder drives: Moving large volumes of rock and ore.
• Marine and industrial applications:
  • Powerful winches: Used on tugboats, ships and port cranes.
  • Shredder drives: Recycling scrap metal, car tires and other heavy waste.

Cross-Number:

Installed in the equipment model:

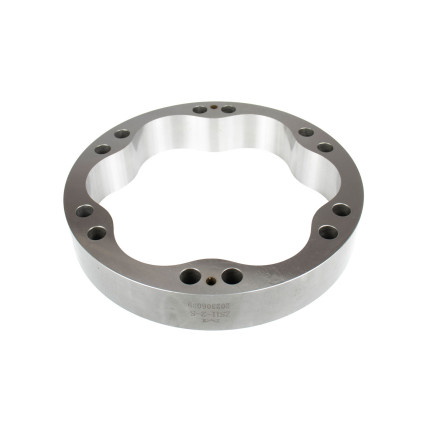

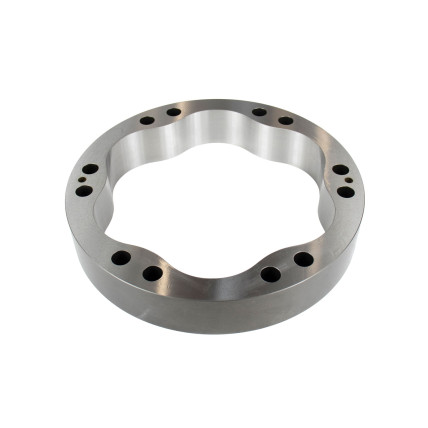

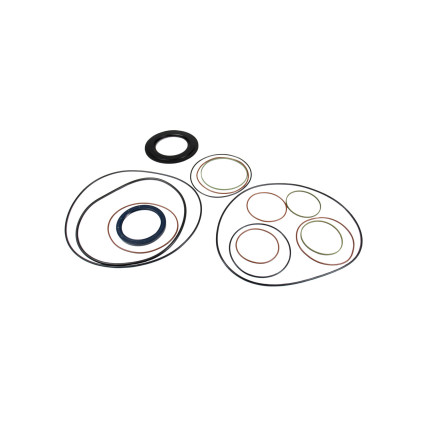

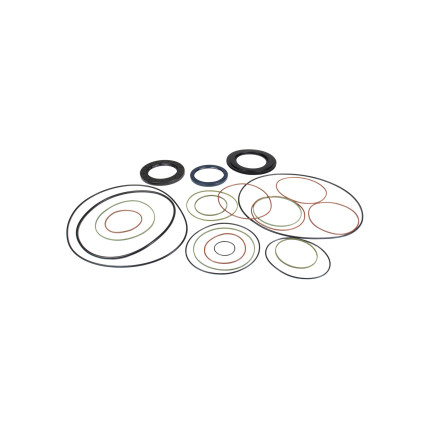

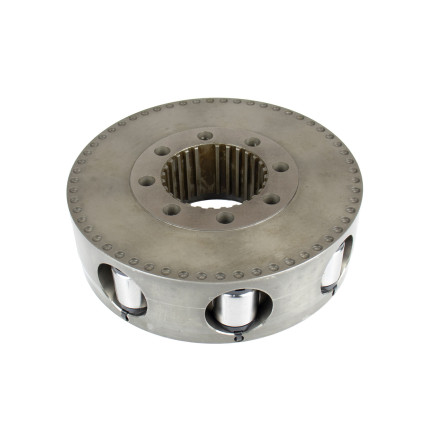

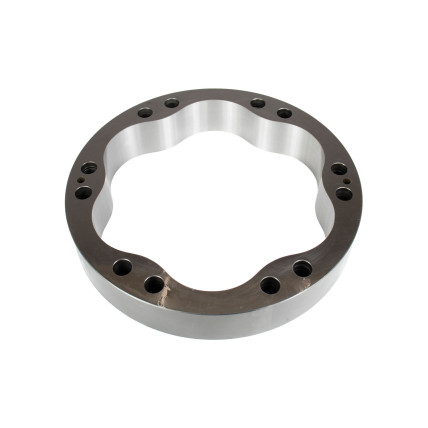

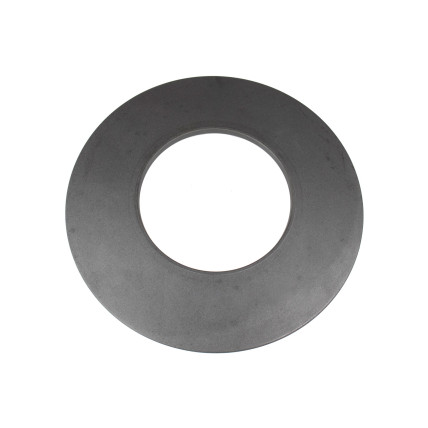

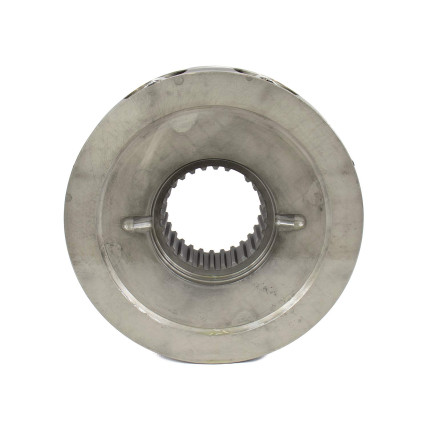

The company "Aspect Plus" offers a wide range of spare parts for repairing the Poclain MS11 MSE11 hydraulic motor.
