MS18 MSE18

Characteristics of the Poclain MS18 MSE18 hydraulic motor

The Poclain MS18 and MSE18 hydraulic motors are powerful units designed for the toughest applications where maximum torque and reliability are required. These motors are the driving force behind large construction, mining and special machinery, providing them with exceptional tractive effort. The MSE18 series is the evolutionary continuation of the MS18, offering higher speed, more power and better efficiency for the most modern machines.

Technical specifications of the Poclain MS18 MSE18 hydraulic motor:

• Type: High Torque Low Speed (HTLS) Hydraulic Motor
• Construction
  • Poclain MS18: Radial piston, modular. Known as the "Classic" version
  • Poclain MSE18: Radial piston, modular. "HighFlow" version with improved hydrodynamics
• Displacement: From 1740 to 2780 cm3/rev
• Max. torque: Up to 4400 Nm
• Max. peak pressure
  • Poclain MS18: Up to 450 bar
  • Poclain MSE18: Up to 400 bar
• Max. continuous pressure
  • Poclain MS18: Up to 250 bar
  • Poclain MSE18: Up to 300 bar
• Max. rotation speed
  • Poclain MS18: Up to 315 rpm
  • Poclain MSE18: Up to 380 rpm
• Max power
  • Poclain MS18: Up to 68 kW (91 hp)
  • Poclain MSE18: Up to 100 kW (134 hp)
• Weight: ~ 110 - 130 kg

Poclain MS18 and MSE18 motorsdesigned for heavy equipment where reliability and power are critical factors.

• Construction machinery:
  • Drive for large road milling machines and soil stabilizers: Provides movement of heavy machines and drive of working elements.
  • Crawler jib crane drive: Guarantees smooth and precise movement.
• Mining industry:
  • Traction drive for road-going combines and quarry excavators: Reliable operation in extreme conditions underground and on the surface.
  • Conveyor and feeder drives: Moving large volumes of rock and ore.
• Agricultural and forestry machinery:
  • Traction drive for large tracked tractors and forage harvesters: Ensures the traversability of heavy machines on soft and wet soils.
  • Wood chipper drive: Used to rotate a massive cutting drum.
• Marine and industrial applications:
  • Shredder drives: Recycling scrap metal, car tires and other heavy waste.
  • Powerful winches: Used on tugboats, ships and port cranes.

Cross-Number:

Installed in the equipment model:

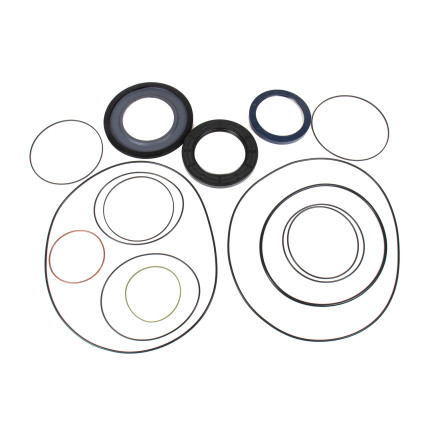

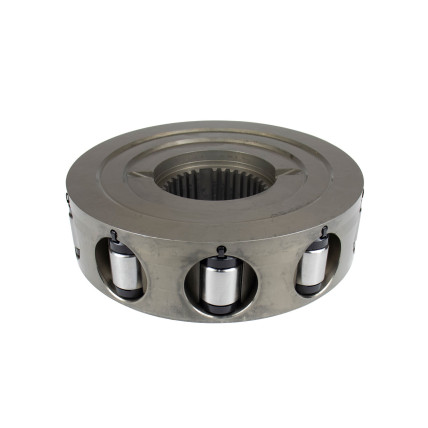

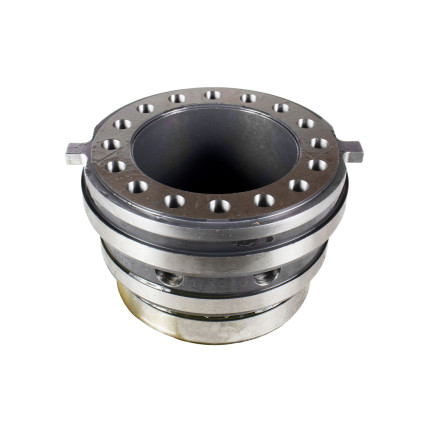

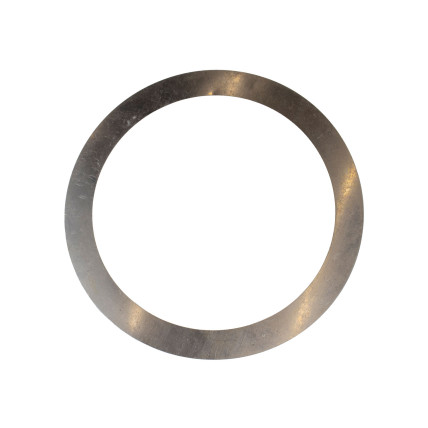

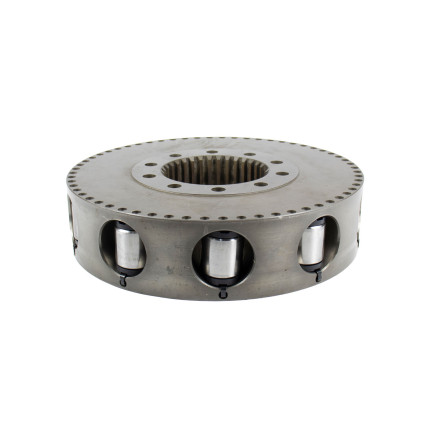

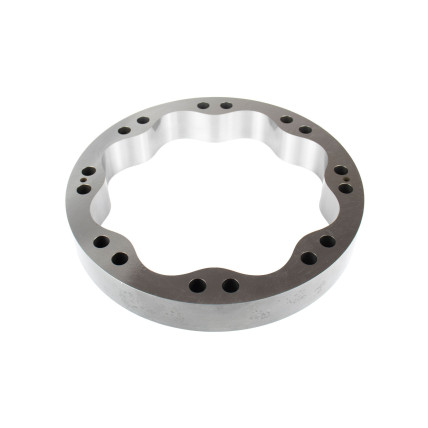

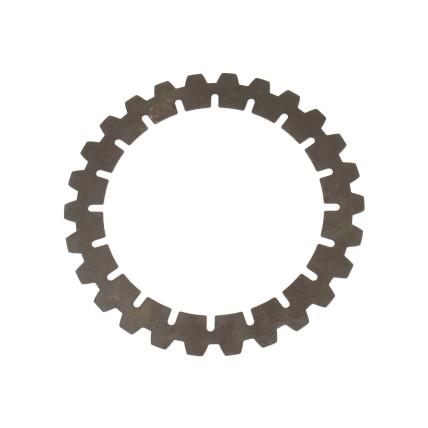

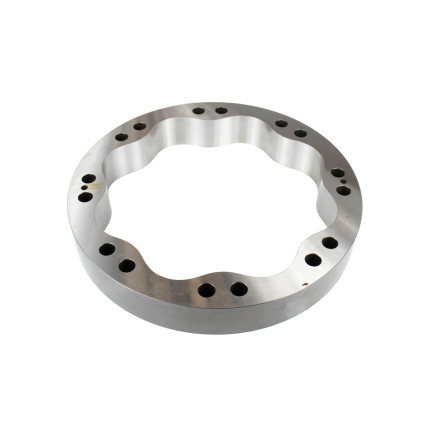

The company "Aspect Plus" offers a wide range of spare parts for repairing the Poclain MS18 MSE18 hydraulic motor.
