SG020 MFB45 MFC45

Toshiba SG020 MFB45 MFC45 hydraulic motor specifications

The Toshiba SG020 MFB45 MFC45 hydraulic motor is an axial piston hydraulic gear motor designed to drive the slewing mechanism of construction machinery, mainly crawler excavators. This unit combines a high-speed hydraulic motor and a planetary gearbox, which provides high torque and low rotational speed, necessary for smooth and precise slewing of the machine platform. It is an OEM component, so its characteristics are closely related to the hydraulic systems of the excavators in which it is installed.

Technical specifications of the Toshiba SG020 MFB45 MFC45 hydraulic motor:

• Type: Hydraulic motor-reducer for turning
• Design: It is an integrated unit consisting of:
  • Hydraulic motor: Axial piston motor with swash plate.
  • Reducer: Multi-stage planetary reducer for speed reduction and torque increase.
  • Brake valve and safety valves: Usually built into the body for safe and smooth operation.
• Displacement: 45 cm³/rev.
• Nominal operating pressure: 250 - 280 bar (25 - 28 MPa).
• Maximum peak pressure: up to 350 bar (35 MPa).
• Rotation speed: 10-15 rpm
• Weight: approximately 50-70 kg
• Application: Used as the main engine of the turntable on excavators and other medium-class special equipment (approximately 7-15 tons)

Cross numbers of hydraulic motors:

Installed in the equipment model:

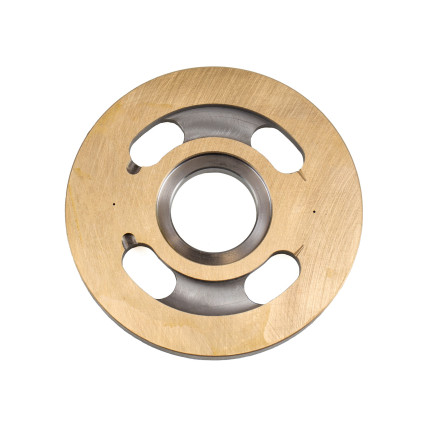

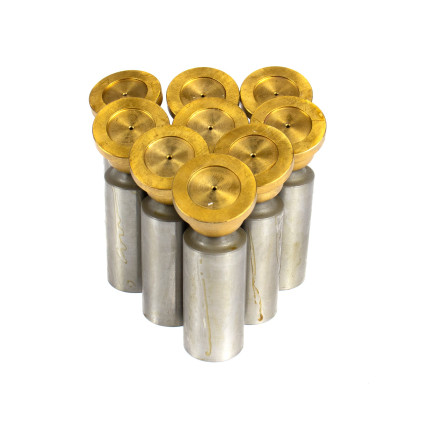

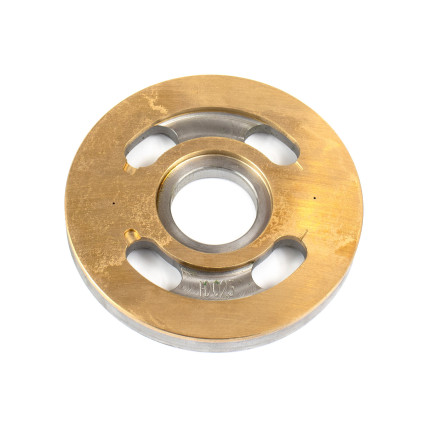

The company "Aspect Plus" offers a wide range of spare parts for repairing the Toshiba SG020 MFB45 MFC45 hydraulic motor.
